LoRaWAN Tester

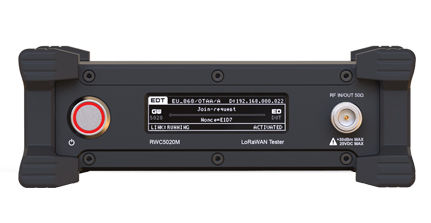

The RWC5020M is a compact all-in-one LoRa/LoRaWAN tester, which offers most of the industry-leading features of RWC5020B at a very attractive price. It supports both engineering and manufacturing tests with a single tester: RF Performance, LoRaWAN Pre-certification, Firmware Update Over The Air (FUOTA), and more.

  • 제품 개요
  • 스펙
LoRaWAN Compliance

EU868, US915, EU433, AU915, CN470, AS923, KR920, IN865 and RU864

LoRaWAN V1.0.x/V1.1.x and Class A/B/C

Protocol & Functional Test

LoRaWAN Pre-Certification Tests - EU, US/CA, AS, KR and IN

Scenarios for transmission of MAC commands and user application data

FUOTA Test with user firmware binaries

RF Performance Test

TX Power/Frequency and RX Sensitivity for End-device & Gateway

Semtech's Non-regression Tests (with RWC2020A)

LBT Test (with RWC2020A)

Manufacturing Test

Separate TX/RX Tests with DUT controls - power, frequency and sensitivity

Simultaneous TX/RX Tests (MFG) without wired DUT controls

Specification

Frequency : 400MHz to 510MHz, 862MHz to 960MHz

Output Power Level : 0dBm to -150dBm

Dimension : 200(w) x 70(h) x 220(d) mm

Interface : Ethernet, RS-232C

Power Input : DC 12V/3A

Weight : 2.2kg

Frequency ​​Range 400MHz ~ 510MHz, 862MHz ~ 960MHz
Resolution 100Hz
Stability vs. +25℃ ±0.5ppm standard
Stability vs. Aging ±1ppm/1st year
Output Level Range 0dBm ~ -150dBm​
Resolution 0.1dB
Accuracy ±1dB
​Impedance 50Ω
Input Level +30dBm ~ -80dBm for Power Measurement​
+30dBm ~ -50dBm for Frequency Measurement​​
Measurement Accuracy​ ±1dB for Power​
±1KHz for Frequency (Single Tone)​​
VSWR​ Better than 1:1.5​
External Reference 10MHz (0dBm ~ +20dBm MAX)
External Frequency Reference​ Frequency 10MHz
Power Range 0dBm ~ +20dBm​
Remote Programming Ports​ RJ45(Ethernet)​​
RS-232C​​
Miscellaneous Operating temperature 5 ~ 40℃
Input 12V/3A VDC
Dimension 200(w) x 70(h) x 220(d) mm
Weight 2.2kg
PC Software

이 PC 애플리케이션은 LoRa 인증 테스트, 성능 측정, 링크 메시지 로깅 및 DUT 제어와 같은 다양한 특수 측정 기능을 제공합니다. RWC5020B는 DUT의 PER와 같은 특정 특성을 자동으로 측정하고, LoRa Alliance 표준에 따라 링크 메시지 또는 측정 데이터와 같은 데이터를 획득하고, 보고서를 한 번의 클릭으로 요약하고 작성합니다.
