RF 신호 발생기
> 메이커별제품 > Anritsu
* 제품이미지 혹은 모델명/제품명 클릭시 상세페이지로 이동됩니다.
| 모델/제품 | 주파수 | Switching Speed |
Output Level | (Single Side Band) Phase Noise |
|
|---|---|---|---|---|---|
 |

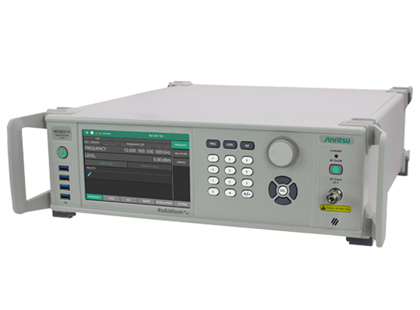

Vector Signal GeneratorMG362x1A | 9 kHz to 20/43.5 GHz | 5 ms | Min: -130 dBm (with step attenuator) Max: +21 dBm(10 GHz, std) +30 dBm (10 GHz, with high power opt.) |
-136 dBc/Hz (typ.) (10 GHz, 10 kHz offset) |
 |

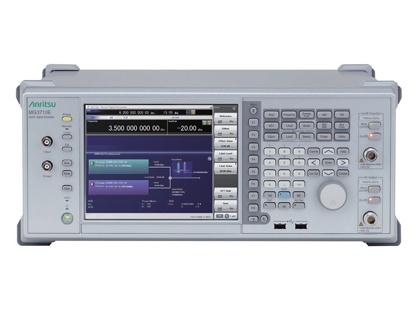

Spectrum Master 소형 스펙트럼 분석기MG3710E | 100 kHz to 2.7 GHz 100 kHz to 4 GHz 100 kHz to 6 GHz |
≤600 µs | Min: -144 dBm (with High power opt.) Max: +30 dBm (with low power opt.) |
<-131 dBc/Hz (typ.) (1 GHz, 20 kHz offset) |
 |

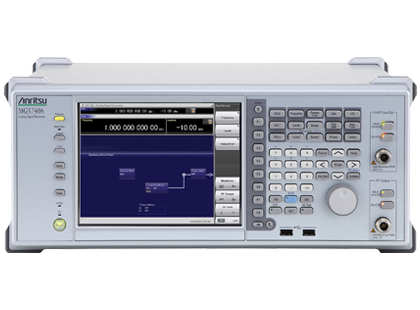

Analog Signal GeneratorMG3740A | 100 kHz to 2.7 GHz 100 kHz to 4 GHz 100 kHz to 6 GHz |
≤600 µs | Min: -144 dBm (with High power opt.) Max: +30 dBm (with low power opt.) |
<-131 dBc/Hz (typ.) (1 GHz, 20 kHz offset) |
 |

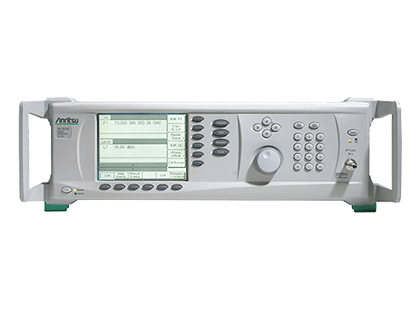

RF/마이크로파 신호 발생기MG3690C | 0.1 Hz to 70 GHz 0.1 Hz to 500 GHz |
5 ms | Min: -120 dBm (with step attenuator) Max: +19 dBm (10 GHz, std) +26 dBm (10 GHz, with high power opt.) |
-108 dBc/Hz (typ.) (40 GHz, 10 kHz offset) |
