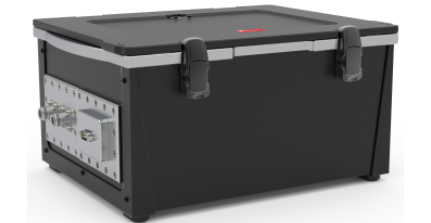

RF Shielding Enclosure RWC7100A

RWC7100A is an RF shielding enclosure that guarantees 100 dB isolation over a wide range of frequency bands, up to 6.5GHz. Its high and reliable shielding performance obtained by a triple contact structure makes it easy to test and measure radiated performances of wireless devices in the area of following wireless communication technologies:

  • 제품 개요
  • 주요 스펙
  • 상세 스펙

RWC7100A is an RF shielding enclosure that guarantees 100 dB isolation over a wide range of frequency bands, up to 6.5GHz. Its high and reliable shielding performance obtained by a triple contact structure makes it easy to test and measure radiated performances of wireless devices in the area of following wireless communication technologies:



LTE, NB-IoT devices (700MHz, 2-6GHz)

LoRa, Sigfox devices (400MHz, 900MHz, 2.4GHz)

WiFi devices (2.4GHz, 5.8-6.2GHz)

BT/BLE devices (2.4GHz)

GNSS devices(1.2-1.6GHz)

Triple contact shield structure

It guarantees stable shielding characteristics in wide frequency range up to 6.5GHz

Internal Absorber

It provides more stable internal RF test condition

Easy maintenance

Users can easily replace shield gaskets manually

Various IO modules provided

Users can easily replace any IO modules manually

Antenna can be mounted on the lid

It provides users with more stable test environment

A Steady hold hinge applied
Shield Characteristicse

It is measured with blank panels mounted.

Shield Effectiveness (dB) ​​Frequency (MHz)
≥ 100 @ 400 to 6500
Miscellaneous

Dimension W x D x H mm (inches)

- Exterior : 355 x 270 x 180 (14” x 10.6” x 7”)
- Interior : 260 x 190 x 100 (10.2” x 7.5” x 3.9”)
- Packing : 450 x 350 x 270 (17.7” x 13.8” x 10.6”)

Weight

- Product : approx. 6 kg
- Packing : approx. 7 kg
