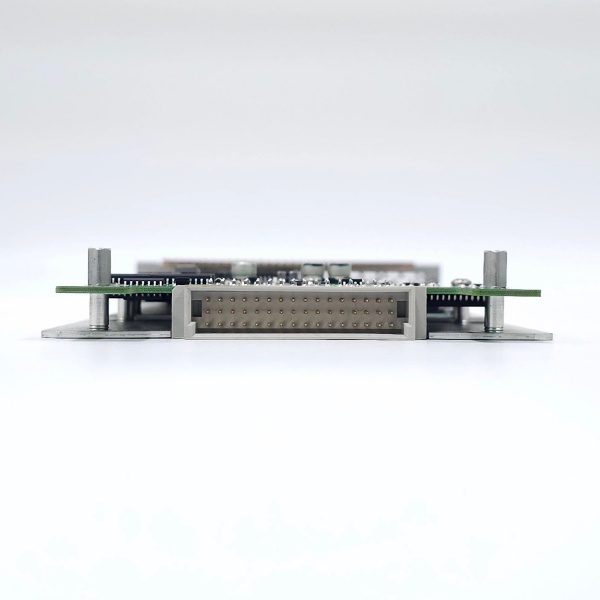

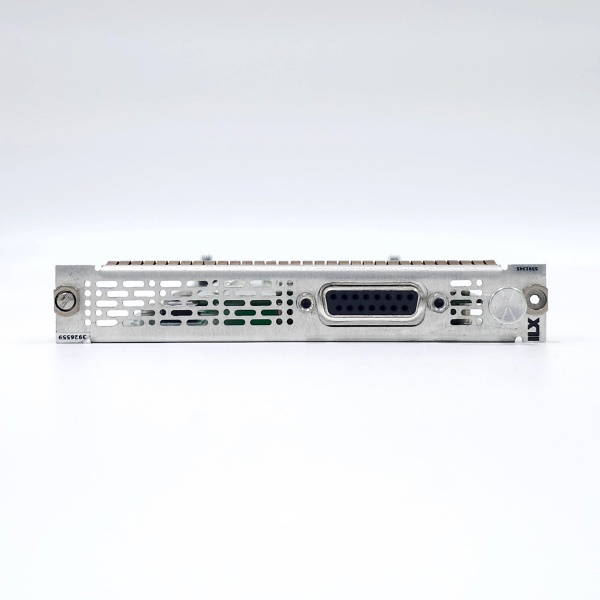

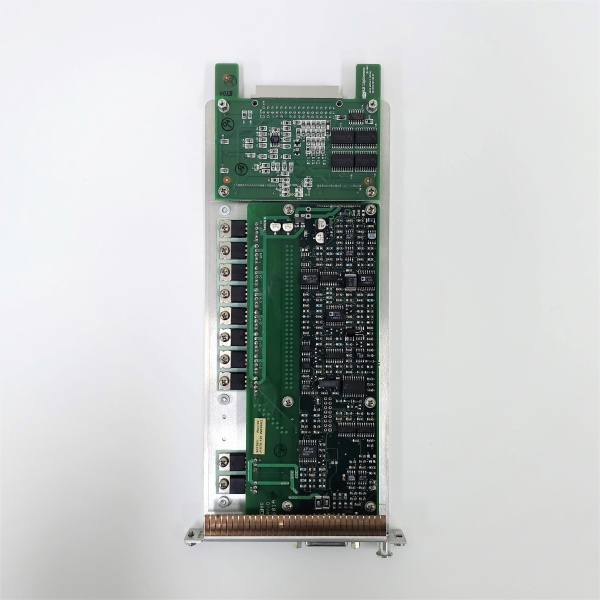

Laser Diode Controller Module
제품 상세정보 |
|
---|---|
제조사 | ILX Lightwave |
모 델 | 3926559 |
옵 션 | |
액세서리 | |
가 격 | ₩700,000 (VAT 별도) |
주요스펙
TEMPERATURE CONTROL OUTPUT
- Temperature Control Range : –99.9°C to 150°C
- Thermistor Setpoint : Resolution / Accuracy
–20°C to 20°C : (0.1°C) / (±0.2°C)
20°C–50°C : (0.2°C) / (±0.2°C)
- Short-Term Stability (one-hour) : <±0.007°C
- Long-Term Stability (24-hours) : <±0.01°C
- Output Type : Bipolar current source
- Compliance Voltage :>8V DC
- Maximum Output
Current : 6.0A
Power : 48W
- Current Noise and Ripple : <2mA rms
- Current Limit
Range : 0.1–6.10A
Accuracy : ±0.06 A
- Control Algorithm : Smart Integrator, Hybrid PI, Gain adjustable from 1–127
TEMPERATURE SENSOR
- Types : Thermistor (2-wire NTC)
- Thermistor Sensing Current : 10µA/100µA
- Usable Thermistor Range : 25–450,000Ω, typical
- User Calibration : Steinhart-Hart, 3 constants
TEC MEASUREMENT (DISPLAY)
- Temperature
Range : –99.9°C to 199.9°C
Accuracy : ±0.5°C
- Thermistor Resistance
10µA Setting
Range : 0.01—450.00kΩ
Accuracy : ±0.05kΩ
100µA Setting
Range : 0.001—45.000kΩ
Accuracy : ±0.005kΩ
- TEC Current
Range : –6.00 to 6.00A
Accuracy : ±0.04A
- Voltage
Range : –10.75 to 10.75V
Resolution :100mV
Accuracy :±70mV
