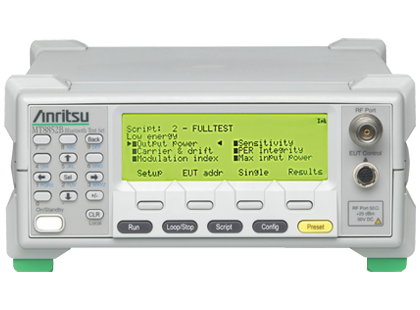

Bluetooth Test Set
MT8852B
- • 블루투스 RF 테스트 규격 호환 측정
- • 블루투스 핵심 규격 버전 1.2와 호환 2.0, 2.1, 3.0+HS, 4.0, 4.1, 4.2
- • Bluetooth SIG로부터 RF 측정 적합성 인증을 받음
- • 8가지의 기본 속도 및 6가지 EDR 테스트 케이스 지원
- • 6가지의 블루투스 저에너지 테스트 케이스 지원
- • 단일 스크립트는 기본 속도, EDR 및 Bluetooth 저에너지 테스트
- • 오디오 테스트 기능. µ-Law, A-Law 및 CVSD 에어 인터페이스를 지원하는
SCO 채널 3개.
- • BlueSuite Pro3 소프트웨어는 변조, 전력 램프, 개별 채널 측정 및 수신기
감도 검색의 그래픽 트레이스를 제공
- • 블루투스 장치에 대한 Adaptive Frequency Hopping (AFH) 테스트 기능
제품 사양
| MT8852B |
| Signal Generator |
| Frequency Range |
2.40 GHz to 2.5 GHz |
| Frequency Resolution |
1 kHz |
| Amplitude Range |
–90 to 0 dBm |
| Amplitude Resolution |
±0.1 dB |
| Measuring Receiver |
| Frequency Range |
2.40 GHz to 2.5 GHz |
| Frequency Resolution |
1 kHz |
| Level Range |
–55 to +22 dBm |
| Level Resolution |
0.1 dB |
| Damage Level |
+25 dBm |
| EUT Control Interface |
|
RS232 HCI Commands |
|
USB HCI Commands |
|
2-Wire Control |
|
USB to RS232 HCI Command |
| Supported Measurements |
| Basic Rate |
| TRM/CA/BV-01-C |
Output Power |
| TRM/CA/BV-03-C |
Power Control |
| TRM/CA/BV-07-C |
Modulation Characteristics |
| TRM/CA/BV-08-C |
Initial Carrier Frequency Tolerance |
| TRM/CA/BV-09-C |
Carrier Frequency Drift |
| TRM/CA/BV-14-C |
Enhanced Power Control |
| RCV/CA/BV-01-C |
Sensitivity–single slot packets |
| RCV/CA/BV-02-C |
Sensitivity–multi-slot packets |
| RCV/CA/BV-06-C |
Maximum Input Leve |
| Enhanced Data Rate (EDR) |
| TRM/CA/BV-10-C |
EDR Relative Transmit Power |
| TRM/CA/BV-11-C |
EDR Carrier Frequency Stability and Modulation Accuracy |
| TRM/CA/BV-12-C |
EDR Differential Phase Encoding |
| RCV/CA/BV-07-C |
EDR Sensitivity |
| RCV/CA/BV-08-C |
EDR BER Floor Performance |
| RCV/CA/BV-10-C |
EDR Maximum Input Level |
| Bluetooth low energy(BLE) |
| TRM-LE/CA/BV-01-C |
Output power at NOC |
| TRM-LE/CA/BV-02-C |
Output power at EOC |
| TRM-LE/CA/BV-05-C |
Modulation characteristics |
| TRM-LE/CA/BV-06-C |
Carrier frequency offset and drift at NOC |
| TRM-LE/CA/BV-07-C |
Carrier frequency offset and drift at EOC |
| RCV-LE/CA/BV-01-C |
Receiver sensitivity at NOC |
| RCV-LE/CA/BV-02-C |
Receiver sensitivity at EOC |
| RCV-LE/CA/BV-06-C |
Maximum input signal level |
| RCV-LE/CA/BV-07-C |
PER Report Integrity |
| Adaptive Frequency Hopping (AFH) |
| Channel utilisation against time |
Display number of active channels as reported by EUT Local Assessment Scheme |
| Frame error rate against time |
Display of link FER with 1 second reporting interval |
| Active channel map |
Display of Active and Masked channels as reported by EUT Local Assessment Scheme |
옵션 & 액세서리
| Standard Accessories |
| BlueSuite (Software, Standard Version) |
| RS232 HCI Control Interface Lead |
| USB HCI Control Interface Lead |
| RS232 Cable for Firmware Updates |
| Power Cord for Destination Country |
| Certificate of Calibration |
| 3.5 mm Jack Plugs (Qty. 3, Audio Versions Only) |
| BlueTest2 (Software) |
| Options |
| MT8852B |
Bluetooth Test Set with EDR and Audio |
| MT8852B-040 |
Bluetooth Test Set with no EDR and no Audio |
| MT8852B-041 |
Bluetooth Test Set with no EDR and with Audio |
| MT8852B-042 |
Bluetooth Test Set with EDR and no Audio |
| MT8852B-043 |
Bluetooth Test Set with low energy measurements only |
| MT8852B-027 |
Bluetooth low energy Measurements |
| MT8852B-034 |
BLE Data Length Extension |
| MT8852B-015 |
Adaptive Frequency Hopping |
| MT8852B-017 |
IQ Data Output |
| MT8852B-001 |
Rack Mount Kit, Single Unit |
| MT8852B-003 |
Rack Mount Kit, Side by Side |
| MX885201B |
BlueSuite Pro3 (Software Application) |
| 2000-1613-R |
Bluetooth Antenna and Adaptor |
| D41310 |
Soft Carry Bag |
